The whole production line includes the following parts:
1. Drying machine
2. SJ-65 single screw extruder
4. Profiles molds (make according to your requirements)
5. Water cooling tank
6. Four-wheeled tractor
7.Coiling machine
Advantage and application:
1.The Extruder has frequency converter to save energy power/ Electricity
2.With the special deign of screw,the material stays in the barrel with short time,and mix better in good plasticizing effect.
3.Because of gear box and vacuum exhaust system,the machine discharge the water and the air ,operate smoothly.
4.Controlled lonely , operated easily.
Production process
single screw extruder → Cooling water tank → Drawing machine →Coiling machine
The main technical parameters | |||||
Model | SJ-45 | SJ-55 | SJ-65 | SJ-80 | SJ-90 |
Screw diameter(mm) | φ45 | φ55 | φ65 | φ80 | φ90 |
Center Hight(mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
Production capacity (kg/h) | 60 | 80 | 120 | 180 | 220 |
Screw rotational speed(r/min) | 60 | 60 | 60 | 60 | 60 |
Main Power(kw/h) | 7.5 | 11 | 15 | 22 | 30 |
Heater ouan | 3+2 | 3+2 | 4+2 | 4+2 | 4+4 |
Total installed capacity(kw) | 12 | 20 | 30 | 42 | 55 |
Weight(t) | 1 | 1.2 | 1.5 | 1.8 | 2.2 |
Established in 1997,QiChang Plastic Machinery Factory has achivments in the plastic machine field.
Company introduction:
1,Specializing in plastic extrusion machinery and plastic auxiliary production.having been found for more than twenty years since 1997
2,With excellent processing equipment and a team of dedicated professionals
3,Provides recipes from raw materials, production operated processing operating staff training and so a full range of services
4,Products being sold to all over the world including the Middle East, the Americas, Russia, Europe, South Asia and etc.
Operating system:
Pre-sale service:
1. Our principle is to give customers peace of mind,such as making investment budget, manufacturing planning, training operation staff,etc. so that customers make a reasonable plan with less cost.
2. Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting
3. Plant Planning: We provide the mounting dimension of the equipment base, design of equipment layout, workshop ventilation, water transmission etc.
In-sale service
1. Detailed design of lay-out that is the position of the procession
2. Technological information of provided products
3. Schedule about design,manufacturing and installation
4. Working & Producing progression
After-sales service
1. The supplier provide service manual and maintenance instruction of main electric appliance,limb,usage manual of equipment.We also supply water,electricity,gas of equipment and installation drawing.
2. The supplier is responsible for installation,debugging and training, but the air tickets,insurance,eating,housing and every day 50 USD for each engineer will be payed by the buyers.
3. Fittings of the machine will be supplied at preferential price after one year .

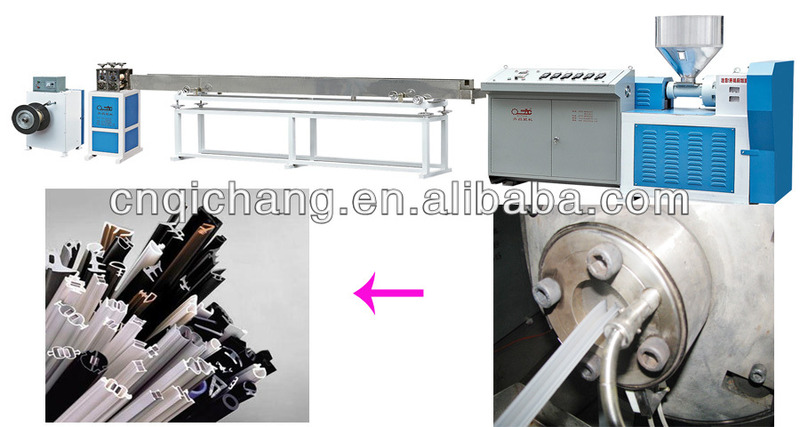

the complete production process:
the unit of the extrusion line :
1.extruder
2.the mold die head of the extrusion
3. water cooling tank
3.four-wheel tractor
4.winding machine
5.finshed products
6.packaging
7.workshop shows
