特徴

仕様

Application: Packing strap

Plastic Processed: PET

Condition: New

Screw Design: Single-screw

Screw Material: 38CrMoALA

Screw diameter (mm): 65

Screw L/D Ratio: 33:1

Screw Speed (rpm): 110 rpm

Showroom Location: Egypt, Turkey, United States, France, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Kyrgyzstan, Nige

Voltage: 380V 50Hz or customized

Dimension(L*W*H): 45*1.5*5m

Power (kW): 100

Weight: 12t

Warranty: 1 Year

Key Selling Points: Automatic

Applicable Industries: Manufacturing Plant

Marketing Type: New Product 2020

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty of core components: 1 Year

Core Components: Motor, Gearbox

Product Name: PET packing strap making machine

Raw material: PET

Processing Type: PET strapExtrusion Machine

Pipe diameter: 10-25mm

Screw&barrel: 38CrMoAlA with Nitriding Treatment

Cooling way: Water cooling

Automatic Grade: Fully Automaitc

Inverter: ABB Schneider or customized

Contactor: Schneider

Temperature control: RKC or Omron

After-sales Service Provided: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support

After Warranty Service: Video technical support, Online support, Spare parts

Local ServiceÂ Location: Egypt, Turkey, France, Viet Nam, Philippines, Peru, Indonesia, Pakistan, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan

証明: CE ISO

基本情報

証明: CE ISO

お支払配送条件

Packaging Details: standard exporting container loading

Supply Ability: 12 Set/Sets per Year

製品の説明

Products Description

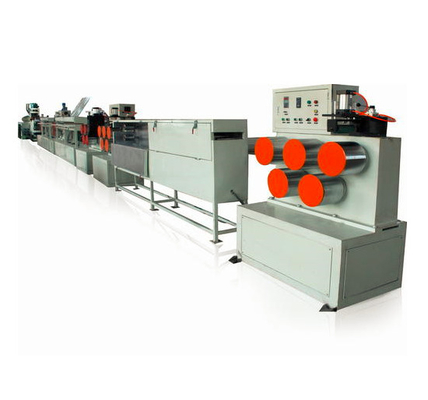

Greenlandplast PET packing strap making machine

Adopts advanced comby dehumidify dryer system. It make sure the material humidity at 80PPM at 50PPM dew point. Meanwhile,itcompact material and increase the viscidity.Adopts closed cycle transport system after dryer to avoid contact with outside air and make sure the material be dry continuously.Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw suitable for recycled PET bottle flakes, PET mixture and original PET material.

And the extruder adopts ration forced feeding to make sure the stable extruding. It makes sure the product uniform.
Produce different model product at one die and mould. Adopts hydraulic screen exchanger without material leak.
Static cooling roller replace the water cooling tank. The roller will cool the strap at the constant temperature. It improves the product's stretch intensity.
The strap after formed will be warm and anneal treated to wipe off the part stress remained after stretch. It makes molecule tropism be steady to avoid strap distortion caused by storage.
The winder adopts double work position and auto-meter. It is easy operation and convenient coil change.
Centralized electrical control, PLC self-correcting control. Easy operation.

Model	Capacity	Total power	Strap size	Labor cost	Area required
SJ65 single output	50-60kgh	85kw	9-20mm	1-2	3545m (LWH)
SJ75 single output	80-100kgh	100kw	9-20mm	1-2	3845m (LWH)
SJ75 double output	80-120kgh	110KW	9-20mm	1~2	4055m (LWH)
SJ90 double output	120-150kgh	145KW	9-20mm	1~2	434.55m (LWH)
SJ120 double output	150-200kgh	210KW	9-20mm	2~3	4555m
