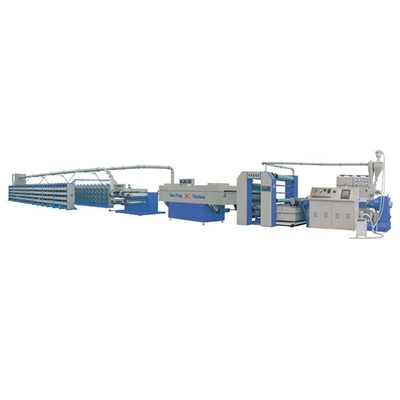

Factory direct sales High Speed Extrusion Line tape line for PP Yarn
More Information for PP Woven Sack Whole Production Line Manufacturer Price:
This series flat yarn extrusion line is designed and developed on the base of introducing and assimilating the up-to-date technologies at home and abroad.
It adopts the international electric digital-simulation control technology such as computer-controlled frequency conversion speed regulation so as to make the main target reach the international advanced level.
Meanwhile, with high production efficiency and high quality of tape tube forming.
As required, this assembly can also be equipped with advanced filter change structure as well as fibrosis structure that is used for producing flexible packaging bags or fibrosis sewing thread.
This line has two kinds of stock thread heating structures, i. e. Hot-blast stretching oven and electric baking board for customers' alternatives.
Applied to a wide range, it can be used for the forming of PP, HDPE and LLDPE flat yarn.
| Type |
Max extrusion output |
Screw diameter |
Ratio of L/D |
Rotational speed of screw |
Width of die lip |
Max linear speed |
Flat yarn denier scope |
| YF-SPL-80/33/800 | 200kg/h | 80mm | 33: 1 | 20-120r/min | 800mm | 280m/min | 60-200tex |
| YF-SPL-90/33/1000 | 280kg/h | 90mm | 33: 1 | 20-120r/min | 1000mm | 280m/min | 60-200tex |
| YF-SPL-110/30/1200 | 380kg/h | 110mm | 30: 1 | 20-120r/min | 1200mm | 280m/min | 60-200tex |
| YF-SPL-120/30/1500 | 500kg/h | 120mm | 30: 1 | 20-120r/min | 1500mm | 280m/min | 60-200tex |
| Type |
Drawing ratio |
Number of winder (spindles) |
Dimension of bobbin (D× L)(mm) |
System installed power |
Normal consumption power |
Installing dimensions(L× W× H) |
Weight (kg) |
| YF-SPL-80/33/800 | 4-10 | 136 | 38× 230 | 240kw | 120kw | 29000× 3600× 3200 | 21000 |
| YF-SPL-90/33/1000 | 4-10 | 176 | 38× 230 | 290kw | 160kw | 32000× 3600× 3200 | 26000 |
| YF-SPL-110/30/1200 | 4-10 | 208 | 38× 230 | 320kw | 170kw | 34000× 3800× 3200 | 30000 |
| YF-SPL-120/30/1500 | 4-10 | 256 | 38× 230 | 380kw | 210kw | 37000× 3800× 3200 | 32000 |
