特徴

仕様

Application: PIPE, Granules, Filament, Pelletizing

Plastic Processed: PP, ABS, PA, EVA, PET, PLA,HIPS

Condition: New

Screw Design: Single-screw

Screw Material: Nitriding out

Screw diameter (mm): 25

Screw L/D Ratio: 25:1

Screw Speed (rpm): 70 rpm

Showroom Location: None

Voltage: Customized

Power (kW): 1.5

Warranty: 1 Year

Key Selling Points: High Productivity

Applicable Industries: Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Beverage Shops, Advertising Company

Marketing Type: New Product 2020

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty of core components: 1 Year

Core Components: Motor, Gearbox

Productivity: 1-2kg/h

Material: Stainless Steel

Heating power: 1KW*2,1 heating zone for the mold

After-sales Service Provided: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

基本情報

お支払配送条件

Packaging Details: The machine body is fully covered with waterproof membrane, and then fixed on the export wooden pallet.

Supply Ability: 5 Set/Sets per Month

製品の説明

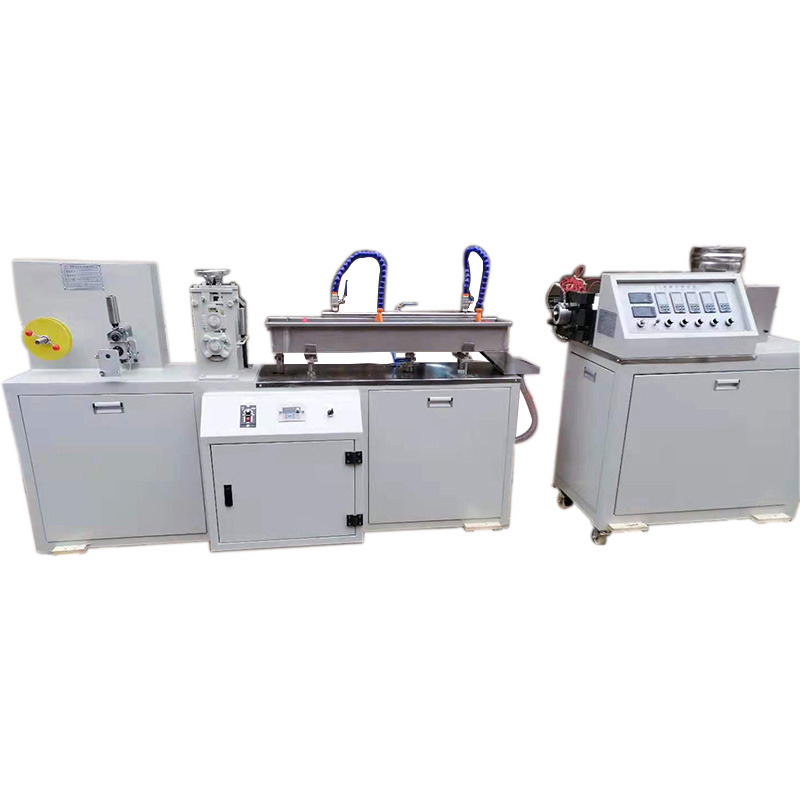

SJ25 small diy plastic extruder

SJ series single screw extruder is mainly composed of barrel screw, momentum driving system, heating, cooling and electric controllers etc. It is mainly used in plasticizing and extruding of PE, PP, LDPE,HDPE,EVA pipes, plates, sheets, film, profiles, granulates and other plastic products.

Specification

Modle	L/D	Output	Power	Center Height
SJ-20	10:1	0.5kg/h	1.5-3kw	1000mm
SJ-25	25:1	1-2kg/h	3-5kw	1000mm
SJ-35	25-33:1	5-10kg/h	3-5.5kw	1000mm
SJ-40	25-33:1	10-15kg/h	7.5-18.5kw	1000mm
SJ-50	25-33:1	20-35kg/h	22-37kw	1000mm
SJ-65	25-33:1	40-50kg/h	37-55kw	1000mm

Product Description

Company Profile

Zhangjiagang Huiping Machinery Co., Ltd.

The company is located in Zhangjiagang City, Jiangsu Province, which is an important place of mechanical production. It mainly produces various plastic pipe and profile extrusion production equipment, such as PVC plastic pipe profile production line, PE pipe production line, PP-R pipe production line, 3D consumables production line, high-speed mixer, centralized feeding system, etc. Can accept a variety of non-standard customized products. We have been engaged in the field of plastic extrusion for 12 years, accumulated rich experience and cooperated with many famous domestic universities, such as Peking University, Beijing University of technology, Suzhou University, etc. We will create a bright future for Huiping with the enterprise concept of the new century

We have been engaged in the field of plastic extrusion for 12 years and accumulated rich experience. We can accept all kinds of non-standard customized products. Looking forward to working with you.

Our Advantages

Market

Packing & Delivery

After sales

1、after checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

2、after quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

FAQ

Q1. What material do you use? A1.Such as PP、PPR、PVC、PE、ABS......

Q2. What diameter (mm) mould do you need（ Mold shape)? A2. Round hole or square hole，What diameter or size?.

Q3.Other requirements of your equipment, such as port, power supply, output? Our company will carry out customized production according to your needs.
