特徴

仕様

Application: PIPE

Plastic Processed: PPR

Condition: New

Screw Design: Single-screw

Screw Material: 38CrMoALA

Screw diameter (mm): 65

Screw L/D Ratio: 33:1

Screw Speed (rpm): 37 rpm

Showroom Location: Egypt, Brazil, Peru, Pakistan, Russia, Argentina, Romania, Bangladesh, Ukraine, Uzbekistan, Tajikistan, Malaysia, Australia

Voltage: 380U, 50HZ, 3P. Customized

Dimension(L*W*H): 38000X3400X3000mm

Power (kW): 150

Weight: 5.5TON

Warranty: 1 Year

Key Selling Points: Competitive Price

Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Shops, Advertising Company

Marketing Type: Ordinary Product

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty of core components: 1 Year

Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine

Main extruder: SJ65 single screw extruder for maximum 63mm PPR pipe making

Raw material: PP granules for PPR pipe making

Machine Color: Can be customized

Extruder heating barrel: Ceramic heating for keeping temperature

Cooling tank method: Spraying

Inverter: ABB or Equivalent brand

Main motor: SIMO or Equivalent brand

Raw materials feeding: By vacuum loading

Final product: PPR pipe for hot and cooling water

Final PPR Pipe Stacker: 6 Meters

After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: Egypt, Brazil, Pakistan, Russia, Thailand, Australia, Argentina, Bangladesh, Kazakhstan, Ukraine, Uzbekistan

証明: CE

基本情報

証明: CE

お支払配送条件

Packaging Details: Standard plywood and film packing for Plastic PPR Pipe Cooling Drinking Water Pipe PPR Hot Water Pipe Extrusion Making Machine

Supply Ability: 2000 Set/Sets per Year Plastic PPR Pipe Cooling Drinking Water Pipe making machine

製品の説明

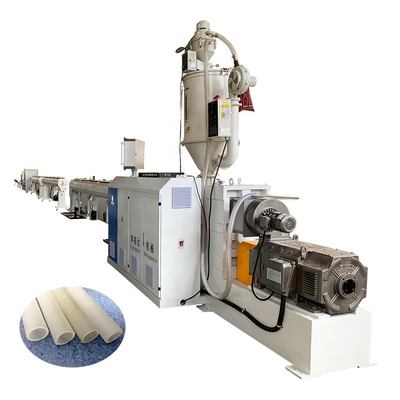

20-63MM Plastic PPR Pipe Cooling Drinking Water Pipe PPR Hot Water Pipe Extrusion Making Machine

Finished Product

PPR pipe applications

1. Cold and hot water system of the building, including the central heating system 2. The heating system in the building, including the floor, wall panels and radiant heating system 3. Pure water supply system that can be directly drinkable 4. Central (centralized) air conditioning system 5. Industrial piping systems for transporting or discharging chemical media 6. Piping systems such as the gas path used for cylinder transmission

PPR pipe Advantages:

1. Hygienic & non-toxic: PPR raw materials- non-toxic and tasteless, can be used in pure water drinking pipeline systems

2. Good heat resistance: working water temperature is 95°C, short-term use temperature can reach 120°C, long-term continuous use under the conditions of temperature 60°C and working pressure 1.2Mpa 3. Corrosion resistance and non-scaling

4. Light weight, high strength and good toughness 5. Heat preservation and energy saving 6. The installation is convenient and reliable, and the hidden danger of water leakage is eliminated 7. Beautiful appearance: smooth inner and outer walls, soft color, beautiful appearance 8. Pipeline system has a life of more than 50 years under normal use

Product Description

PPR Pipe Cooling Drinking Water Pipe PPR Hot Water Pipe Extrusion Making Machine List
NO	Machine Name	Qty
1	Automatic vacuum loader and hopper dryer	1 SET
2	SJ65/33 Single screw extruder	1 SET
3	Co-extruder for mark line (by choosen)	1 SET
4	Extrusion mould with different diameter	1 SET
5	Water tank for water spraying	3 SETS
6	Haul off machine with customized rubber block	1 SET
7	Non-dust cutter	1 SET
8	6 Meters final stacker for discharge	1 SET

SJ65/33 Singe screw extruder

1. Main motor: SIMO brand, 75KW, DC

2. L:D=33:1

3. Extrusion capacity: 120-180KG/H

4. Extrusion speed: 10-12m/min

5. Main motor control: inverter with ABB brand or other Equivalent brand

6. Heating by ceramic heating

Mould(including heater and calibrator

1. Material: high-quality wearing resistance copper

2. Can change core die and mouth die

3. 6 Heating zones

Spraying water tank

1. Tank material: parts touched with water are made of stainless steel

2. With double filtration system

3. With water level control

4. Tank up and down can be adjustable

Haul off machine for ppr pipe making

1. Haul off method: by caterpillar

2. Driving speed: 1-12m/min

3. Driving motor: 1.5kw*2, AC

Cutter

1. Non-duct cutting

2. Pressing method: pneumatic press

3. With movement synchronized with encoder
