Supplier Automatic Shandong PE Soft Labyrinth Drip Irrigation Pipe Making Machine Plastic Pipe Extrusion Production Line

1 Set
MOQ
$20,000.00(1 - 1 Sets) $19,500.00(2 - 2 Sets) $18,000.00(>=3 Sets)
価格
Supplier Automatic Shandong PE Soft Labyrinth Drip Irrigation Pipe Making Machine Plastic Pipe Extrusion Production Line
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Application: PIPE, Greenhouse, farmland, agriculture
Plastic Processed: PE
Condition: New
Screw Design: Single-screw
Screw Material: 38CrMoALA
Screw diameter (mm): 50-65
Screw L/D Ratio: 30:1
Screw Speed (rpm): 60 rpm
Showroom Location: Egypt, Malaysia
Voltage: 380v
Dimension(L*W*H): 15m*1.5m*2.4m
Power (kW): 22
Weight: 4000kg
Warranty: 1 Year
Key Selling Points: Easy to Operate
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Restaurant, Construction works , Energy & Mining
Marketing Type: New Product 2020
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty of core components: More than 5 years
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw
Product name: Labyrinth type drip tape machine
Feature: Automatic, high speed, easy installation, low cost, etc
Installed capacity: 55-58kw
Haul-off machine power: 0.75-1.1kw
Molding wheel rotation power: 0.75-1.1kw
coiling torque: 6*3Nm
Draught fan: 2.2-3kw
Vacuum pump: 1.45-2.2KW
Main motor power: 15-18.5kw
After-sales Service Provided: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Uzbekistan
証明: ISO9001, CE
基本情報
証明: ISO9001, CE
お支払配送条件
Packaging Details: wooden case
Supply Ability: 40 Set/Sets per Month
製品の説明
Product Description


Shandong supplier PE Soft Labyrinth Drip Irrigation Hose Making Machine Plastic Pipe Extrusion Production Line


The drip irrigation belt products manufactured by this equipment are widely used for farmland and greenhouse, especially suitable for arid areas. It is a patent product for water and energy saving irrigation.
The water saving apparatus of the labyrinth drip irrigation belt has the function of turbulence floe regime and pressure compensation. The labyrinth flow passage molding is formed by vacuum one-time integrative hot pressure. With high manufacturing precision and multiple outlets, it can prevent blocking effectively and provide water evenly.
Product Advantages
1: The screw and the barrel of the extrude use nitrogen treated superior alloy steel 38CrmoAIA. The surface of the screw will be sprayed again with alloy to increase its service life. The screw adopts new type structure, which is especially suitable for PE regenerated material with good plasticizing effect.

2: The molding die head of the drip irrigation belt membrane tube used hot runner center to feed material helically. The membrane tube uses cast aluminum air-ring and is pre-cooled by air. It adopts far-infrared diameter measuring apparatus keep the evenness of the membrane tube thickness. High strength and high.

3: It used the domestic advanced molding device, which makes the space of the inlet and outlet of the drip irrigation belt labyrinth even and stable, so as to assure the evenness and conformity of the dripping quantity.

4: It uses the coupling hauling, The whole traction process uses frequency control. The production line is stable during the producing process.

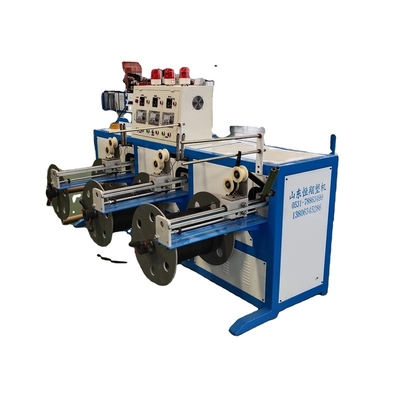

5: It used double-stage center coiling, which makes the operation flexible. It's equipped with electric length counting device which can measure accurately.

6: The whole machine set adopts digital electric control, which can be conveniently operated.
Details Images
Technical Parameters
Model
   SMDGD 50/30
Extruder model
SJ-50, SJ-55
Screw diameter
                                                           φ50~φ55 mm
Installed capacity (kw)
55, 58
Mine motor power
15, 18.5
Haul-off machine power (kw)
                                                                 0.75, 1.1
Molding wheel rotation power(kw)
0.75, 1.1
Coiling Torque (Nm)
6*2 6*3
Draught fan (kw)
2.2, 3
Vacuum pump (kw)
1.45-2.2
Proceeding materials
PE
Our company
Established in 2004, Shandong Everflying Plastic Machinery Co., Ltd, is a manufacturer specialized in the research, development and production of Plastic Machinery. We are located in Laiwu, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us.
Our main products includes:
1.Flat emitter drip tape production line
2. Round/cylindrical drip pipe production line
3.Labyrinth drip tape production line
4.Micro-spray hose/water hose making machine
5.PE pipes production line
6.PVC pipes production line
7.Film blowing machines.
We are looking forward to forming successful business relationships with new clients around the world in the near future.
Certificate
Packing & Delivery
Packing with export standard packing;Delivered by ship,train and car.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-60 days if the goods are
not in stock, it is according to what kind of machine you need
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of
freight.
Q: What is your terms of payment ?
A: By T/T payment with 30% in advance ,70% balance before shipment or L/C at sight or Negotiable.
Customers

More than 800 customers from all over the world.

Our services


Pre-Sales Service and After-Sales Service

Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service:
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
