PVC&EVA cable sheath extrusion line&on-line

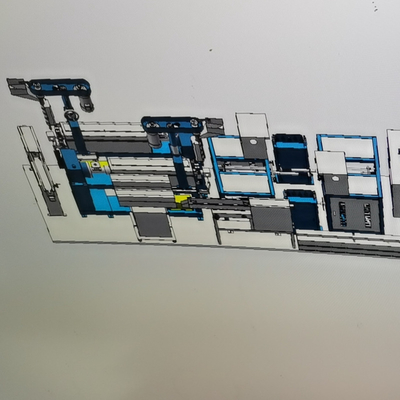

Overall design:
1. Extrusion material: PVC,PU,TPU,TPE, Level of plasticisation 100%.
2. Inlet wire specifications:Φ0.8mm-Φ4mm
3. Insulation extrusion diameter:Φ1.5mm-Φ6.0mm
4. Line speed:10m/min-400m/min
5. Output capacity:MAX150KG/H (90RPM)
6. Equipment Centre Height:1000mm
7. The whole machine direction: right hand direction, facing the main control electronic control box, left hand enter the material, right hand collect the finished products.
8. Power supply: three-phase four-wire,380V,50HZ
9. Electricity consumption of total installed station:MAX/NORMAL 35KW/25KW
10. Water consumption:2M3/H( Recycling)
11. Environmental humidity: not exceeding 95%
12. Air pressure:0.4Mpa
13. Noise: less than70dp (excluded Blowers) 1.0 M Distance measurement.
14. Machine Color
( Color as requested by customers)
Main Accessories Brand and Material
1) All bearings used: NSK( Japan) .
2) Motor: The main motor is Dongyuan(TECO).
3) deceleration motor: city-state (taiwan).
4) Inverter: Sinusoidal (domestic).
5) Thermostat: RKC( Japan).
6) Select switch, press button, Indicator: Tiande (Taiwan).
7) Contactor: Tiande (Taiwan).
8) Intermediate relay: Schneider (France).
9) Table: Kiyosaki (Taiwan).
10) Open, Circuit Breaker: Shilin (Taiwan)
11) Magnetic powder clutch: Dongguan Weizheng.
12) Barrel& screw :(Zhejiang Pengda)
13) Electric box: A3 cold plate shear welding molding, new appearance modeling.
14) Water tank and sink: using SUS304 stainless steel plate shear molding.
The details, please check the vedio.
Film wrapped or wooden pallet.
We profession manufacture series wire drawing machines (with annealer or without annealer), PVC, PE,ect cable extrusion line,etc. We customize machines according to customers asked. Welcome you to contact us for the details.
