solid reputation screw and barrel for sheet extruder machine

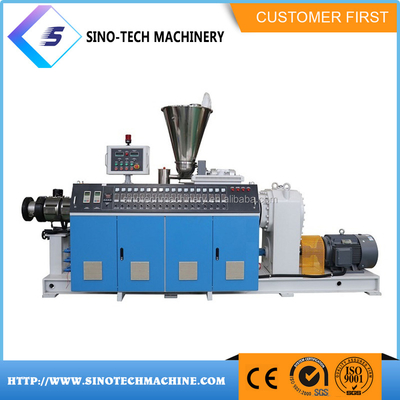

High Capacity Less energy PVC UPVC Plastic Conical Twin Screw extruder
Introduction of the PVC UPVC Plastic Conical Twin Screw extruder:
Description of PVC Extruder:
1.This machine With PLC Control system in the production line, reliable and stable performance.
2.The down stream equipment includes vacuum calibration and cooling unit, haul-off unit, cutting machine and stacker.
3.The calibration unit is equipped with large forced cooling system so that it can provide perfect calibration effect.
4.The hall off unit is caterpillar style. The lower one is fixed and the upper one can be adjusted according to
the plate size.
5.The cutting machine is able to set length and provide accurate automatic cutting.
6.The stacker is attached with material cart and rubber protection layer to prevent products from damage, and easy operation.
Process Flow of PVC extrusion line:
Raw material + additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing
Raw materials for PVC Pipe and Profile:
PVC + calcium + other additives.
PVC high chemical stability,panels can be used for a long time.
Characteristic&Application
SNJZ Series Conical Twin Screw Extruder Has The Features Of Good plasticization, Good Mixing,Extrusion Stable,high output,wide application and long Service life.
This type Extruder Can Produce PVC pipe,PVC WPC Window And Door Profile,PVC floor,PVC Ceiling And Wall Panel,PVC Edge Band, PVC Cable Trunking, PVC Foam Board, PVC Granule
Model | Screw diamter (mm) | Main Motor (kw) | Feeding Motor (kw) | Design Capacity (kg/h) |
SNJZ45/90 | 45/90 | 15 | 1.1 | 70 |
SNJZ51/105 | 51/105 | 18.5 | 1.1 | 100 |
SNJZ55/113 | 55/113 | 22/30 | 1.5 | 150 |
SNJZ65/132 | 65/132 | 37 | 2.2 | 300 |
SNJZ80/156 | 80/156 | 55/75 | 2.2 | 400 |
SNJZ92/188 | 92/188 | 90/110 | 3 | 700 |
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or Alibaba trade assurance.
Q3:If you can extend the guarantee time?
A3:Yes.Our guarantee time is 24 months.Double times of other factory because we have strong confidence for our product.
Q4:If you will send engineer coming to our factory to install and test the machines?
A4:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q5:If you have CE,SGS,ISO certificate?
A5:Yes,except these,if you also need other certificates,we also can help to apply.
Q6:If we buy your machines, can you offer us wear-out spare pats?
A6:Yes,We provide our high quality machine 2 years’ guarantee,and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q7:The voltage,if you can design according to our request?
A7:Yes.
Q8:If you support Alibaba trade assurance pay?
A8:Yes.100% support.
