| Model No. | XHD-55/75*1250 |
| Screw Diameter | 55/75mm |
| Screw L/D | 30:1 |
| Screw Speed | 50-150rpm |
| Layer Structure | AB/ABA |
| Film material | PE |
| Film Width | 1000mm/2*500mm |
| Film Thickness | 0.01-0.05mm |
| Electric power supply | Customized, Standard is 380V/50HZ/3P |
| Total Power | 75KW |
| Capacity | 80-150Kg/h |
| Total weight | 8T |
| Dimension | 7.5M*3M*3M |

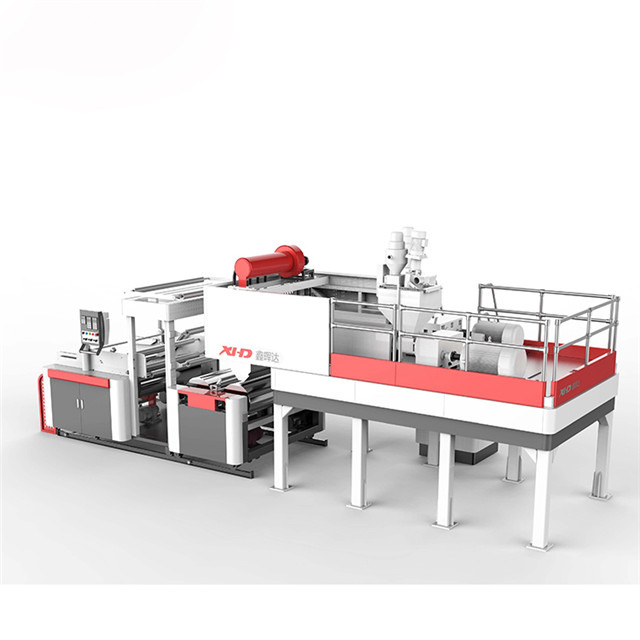

Structure of Machine
Product Advantages
Easy operating, long life, energy saving
Stable and reasonable extrusion
High quality T-die for excellent film evenness and stability
Enhanced cooling system
(adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller)
Advanced oscillation (swing) system
Highest winding speed (up to 200m/min) among similar stretch film machines
High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min
Patented automatic paper cores unloading & loading system (Optional )
Optional full automatic thickness gauge
Excellent stretch film rolls quality for both hand use rolls and stretch use rolls
Work Team
FAQ
| 1. Q: Can your machine produce other kinds of film? |
| A: Yes. Our machine also can produce silage film and PE cling film. |
| 2. Q: What's the thickness range of the film produced by your machine? |
A: For stretch film, the thickness is from 12 microns to 30 microns. For cling film, the thickness is from 8 microns to 10 microns. For silage film, the thickness is from 15 microns to 35 microns. |
| 3. Q: Can we customize some components of the machine? |
A: Yes. Most of our components are from China or worldwide famous suppliers. You don't have to worry about the replacement of broken parts or the after-sale service. |
| 4. Q: When can you send the engineers for installation, debugging and training of our workers? |
A: It depends, but we usually arrange the engineers before the shipment. The buyer can have his machine running once he receive it. We also have some agents around the world to provide installation service or technical support. All traveling cost of the engineer the such as air tickets, food and shelter cost will be borne by the buyer. |
Related Products
1500mm stretch film machine 2000mm stretch film machine
stretch film rewinding machine cling film rewinding machine
Shipping & Packaging
| Packaging Details | (1)Fully packed with PE stretch film (2)Machine is fastened to the corners of the containers |
|---|---|
| Delivery Time | 60 working days after order confirmed |
