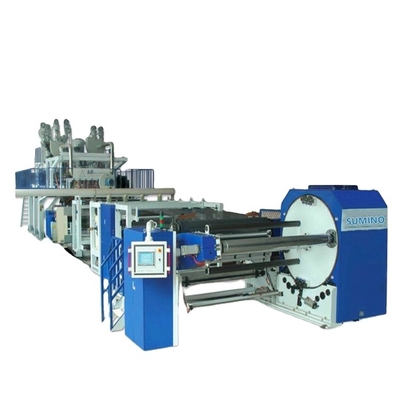

High Capacity CPP CPE CPE Melt Film Laminating Machine Co-extruded Film Cast Line

1 Set
MOQ
$150,000.00(>=1 Sets)
価格
High Capacity CPP CPE CPE Melt Film Laminating Machine Co-extruded Film Cast Line
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Application: Film
Plastic Processed: PE, PP, PET
Condition: New
Screw Design: Single-screw
Screw Material: 38CrMoAlA
Screw diameter (mm): 110 mm
Screw L/D Ratio: 32:1
Showroom Location: None
Voltage: 380V 50HZ 3P, or customized
Dimension(L*W*H): 18*8*6 m
Power (kW): 650
Weight: 50T
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant
Marketing Type: New Product 2020
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, Gear, PLC, Gearbox, Screw, Motor, Pump, PLC, Gearbox
Name: CPP CPE Casting Film Machine
OEM: Offer
Final product: CPP CPE casting Film
Deliver: 60 days
Control: PLC
Power: 350kw
Fabric GSM: 20~200/㎡
Fiber Specification: 2~15μm
Raw Material: Polypropylene (melt finger 1500)
After-sales Service Provided: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Morocco, Kenya, Argentina, South Korea, Chile, UA
Output (kg/h): 600 - 650 kg/h
証明: CE
基本情報
証明: CE
お支払配送条件
Packaging Details: 2200mm CPP CPE Casting Film Machine co-extrusion casting film production line will be packed into plastic films and pallets.
Supply Ability: 20 Set/Sets per Year
製品の説明
Products Description
General Overview of 2200mm CPP CPE Casting Film Machine co-extrusion casting film production line
2200mm CPP CPE Casting Film Machine co-extrusion casting film production line
Model (mm) SJLM-CPE-Z
2200
3000
3500
Screw Diameter (mm)
90/135/90
100/150/100
110/160/110
Length-diameter Ratio of Screw (L/D)
32:1
32:1
32:1
Width of Die (mm)
2500
3500
4000
Width of Finished Film (mm)
2200
3000
3500
Thickness of Finished Film (mm)
0.03-0.12
0.03-0.12
0.03-0.12
Structure of Film
A/B/C
A/B/C
A/B/C
Maximum Extrusion Capacity (kg/h)
650
850
1000
Linear Speed of Machine (m/minute)
150
150
150
Total Installed Power (KW)
650
800
1000
Overall Dimensions (L×W×H) (m)
18×8×6
20×9×6
25×10×6
Weight (T)
50
60
70
Details Images

Features of Our Production Line

Mask use PFE BFE 95 99 PP Melt blown melt blown nonwoven fabric machine
Product Features
Futures of 2200mm CPP CPE Casting Film Machine co-extrusion casting film production line
1. The screw is designed with special mixing function and high plasticizing capacity. Worked with static mixer in European style,it ensures excellent plasticizing and mixing effects as well as high output.
2. We also provide optional extras like the die that can be automatically adjusted and the thickness gauge that is controlled by APC system and enables automatic on-line detection of film thickness.
3. This transparent CPE film line can also be optionally equipped with the cooling and molding roller imported from Europe. The specially-designed spiral flow passage is the guarantee of splendid cooling and molding effects during the high-speed production.
4. The positive pressure and negative pressure devices are provided to ensure stable film melt.
5. As the edge trim is recycled online, the production cost is vastly reduced.
6. The automatic winder working with imported tension controller enables automatically film roll changing and film cutting,contributing to convenient and simple operation.
Product Application
Characteristics of CPE Film
1. Remarkably produced by our transparent CPE film line, the CPE film possesses high transparency and low haze.
2. With fine softness and strong resistance to coldness, this film especially fits to be used for refrigerated packaging.
3. Characterized by low orientation degree, it comes with excellent heat sealing property.
4. Although it belongs to the outward stretch film with lower strength compared with the common stretch film, the metallocene CPE possesses high strength.
