SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | ||||||
Technical Parameters | Applicable materials | PP, PE, PVC, PS, PET, etc. | ||||
Screw diameters | 25mm | |||||
Screw rotating speed | 0-95 rpm (adjustable) | |||||
Screw L/D ratio | 33:1 | |||||
Film thickness | 0.03-0.5mm | |||||
Film width | 250mm (customized) | |||||
Die width | 300mm | |||||
Power supply | 380V/50Hz/3 phases or Customerized | |||||
Control mode | SIEMENS PLC Control | |||||

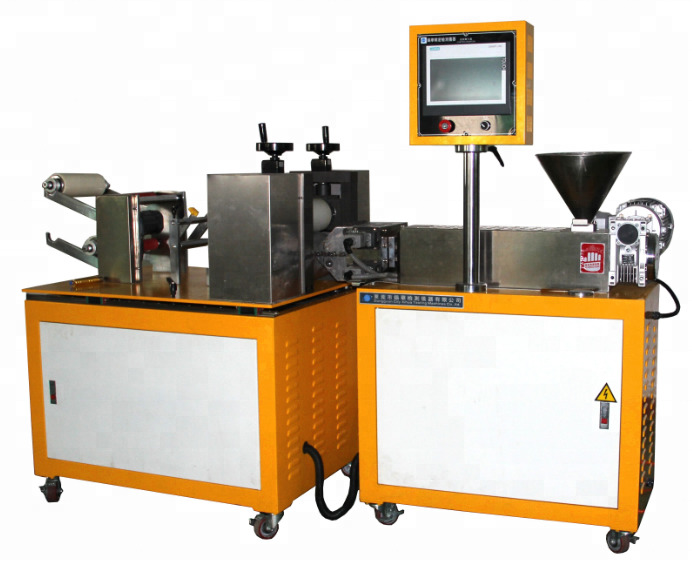

1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant;
2) Using brand melt pressure and temperature sensor to ensure high accurage data
3) Cantilever roll structure making it easy to lead the film and be operated;
4) dopting PLC control system and friendly operation interface to easily operate;
5) On-line testing and displaying melt pressure, temperature and other key data;
6) Emergency stops and devices to protect safety of the operator;
Name: PLC Control system
Brand: SIEMENS
Temperature, speed are display on screen, it's very easy for operating.
Name: DIE
The die is T style flow channel. The upper die lip is manually push adjustable.
Name: calender roll
The mirror rolls can make the film good gloss.
Name: Winding device
The film after tracting by traction roller, it will be rolled by wingding device
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 2600×900×1900mm | |
Weight | 2175kgs | |
Packaging Details | ||
