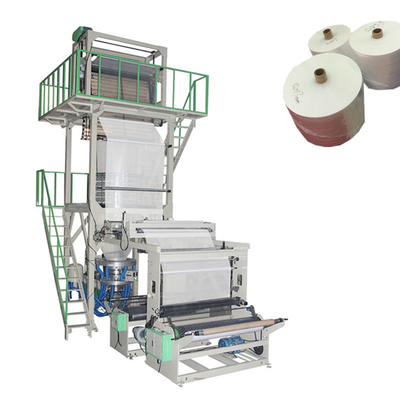

Film blowing machine set cling film wrapping extruder plastic lldpe hdpe aba film extrusion blown machine line
| Model | MD-L75 | MD-L90 | MD-L100 |
| Suitable Material |
LDPE HDPE LLDPE | LDPE LLDPE | LDPE LLDPE |
| Max Film Width(mm) | 800-1500 | 1000-2000 | 1500-2500 |
| Film Thickness(mm) | LD:0.015-0.15 | LD:0.015-0.15 | LD:0.015-0.15 |
| Max Extrusion Output | 150kg/hr | 200kg/hr | 280kg/hr |
| Gear Box | 200 | 225 | 250 |
| Screw Diameter(mm) | φ75 | φ90 | φ100 |
| Screw's Material | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA |
| Barrel's Material | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA |
| Barrel's Cooling Fan | 370W*3 | 550W*3 | 550W*4 |
| Thermo Control (zone) | 4 | 5 | 5 |
| Driving Motor (kw) | 45 | 55 | 75 |
| Die Size (mm) | LD:φ350/400 | LD:φ400/500 | LD:φ500/600 |
| Rotary Die Head | 360° Continue Rotary | ||
| Thermo Control(zone) | 3 | 4 | 4 |
| Air Ring | 1 pcs | 1 pcs | 1 pcs |
| Cooling Blower(kw) | 5.5 | 7.5 | 11 |
| Roller Width(mm) | φ165*1600 | φ190*2100 | φ220*2600 |
| Take-UP Motor (kw) | 1.5 | 2.2 | 2.2 |
| Take-UP Speed(M/min) | 5-60 | 5-60 | 5-50 |
| Type of Winder | Surface Friction Double Winders | ||
| Roller Width (mm) | 1600 | 2100 | 2600 |
| Winding Motor(KW) | 16N.M | 1.5KW | 2.2KW |
| Winding Speed(M/min) | 5-60 | 5-60 | 5-60 |
| Voltage | 380V/50HZ/3PHASE | 380V/50HZ/3PHASE | 380V/50HZ/3PHASE |
| Cover Dimensins(m) | 6.8*2.6*6.5 | 7.5*3.2*7.5 | 9.4.2*9 |
Ruian Mingde Machinery Co., Ltd. is a professional manufacture of plastic machinery company. Main products: one to three layer co-extrusion rotary die film blowing machine, P E single and double winder film blown machine, high speed biodegradable film blowing machine,printing machine and bag making machine air cooling heat cutting recycling machine.
We have the right of imports and exports, work on the quality of the first faith-based service of customer focus, production according to the customers requires, highly speak by customers, have sold to more than 50 countries. have many patents, Got Provincial Science and technology S E M S and National high-tech enterprise in 2018. Next five years we will focus on researching environmental high output low consume new products, standardizing the internal structure of enterprise, Enhance Visibility Mingde brand in the world. Known in the world, reliable by the customer. Mingde machinery are willing forward to cooperation with you making brilliant future.
Q1- Is your company a factory or a trading company?
A1- Mingde is a factory
Q2- Where is your factory? How can i visit your company?
A2- Mingde located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). All our clients from home and abroad are warmly welcome to visit us.
Q3- What is the suitable material for your machines?
A3- HDPE,LDPE,LLDPE,BIODEGRADABLEetc. Are suitable for MINGDE machines
Q4- What is type machines do you have ?
A4 - special for all PE film blowing machine, two layer film blowing machine, ABC/ABA three layer film blowing machine, high speed biodegradable film blowing machine etc...
Q5- How many years of your factory
A5- Mingde MACHINERY setted up in 2010
Q6- What is certificate of machine do you have
A6- CE, EAC, SONCAP And more than 30 piece Patent of machine
Q7- What about your company The development of your company
A7- Mingde Pass Provincial Science and technology S E M S; and honored as”National high-tech enterprise”
Q8- How many exhibition we took part in
A8- We start to took part in CHINAPLAS from 2010 to now,and also Plastic-imagen in Mexico,Interplastica in Russia,Complast in Srilanka, etc..
Q9- how many workers from your company
A9- Mingde has more than 50 employees
Q10-what is size of your factory
A10- Mingde factory place have more than 5000 Square meters
