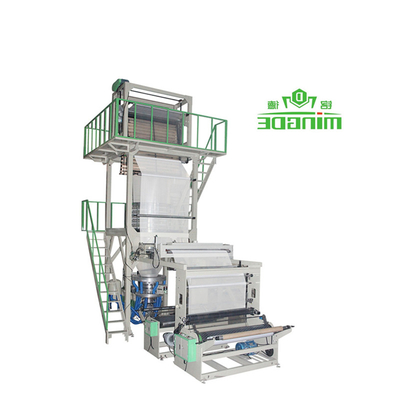

Hot sale film blowing machine set cling film wrapping extruder plastic LLDPE HDPE aba film blown machine
| Model | MD-L75 | MD-L90 | MD-L100 |
| Suitable Material |
LDPE HDPE LLDPE | LDPE LLDPE | LDPE LLDPE |
| Max Film Width(mm) | 800-1500 | 1000-2000 | 1500-2500 |
| Film Thickness(mm) | LD:0.015-0.15 | LD:0.015-0.15 | LD:0.015-0.15 |
| Max Extrusion Output | 150kg/hr | 200kg/hr | 280kg/hr |
| Gear Box | 200 | 225 | 250 |
| Screw Diameter(mm) | φ75 | φ90 | φ100 |
| Screw's Material | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA |
| Barrel's Material | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA |
| Barrel's Cooling Fan | 370W*3 | 550W*3 | 550W*4 |
| Thermo Control (zone) | 4 | 5 | 5 |
| Driving Motor (kw) | 45 | 55 | 75 |
| Die Size (mm) | LD:φ350/400 | LD:φ400/500 | LD:φ500/600 |
| Rotary Die Head | 360° Continue Rotary | ||
| Thermo Control(zone) | 3 | 4 | 4 |
| Air Ring | 1 pcs | 1 pcs | 1 pcs |
| Cooling Blower(kw) | 5.5 | 7.5 | 11 |
| Roller Width(mm) | φ165*1600 | φ190*2100 | φ220*2600 |
| Take-UP Motor (kw) | 1.5 | 2.2 | 2.2 |
| Take-UP Speed(M/min) | 5-60 | 5-60 | 5-50 |
| Type of Winder | Surface Friction Double Winders | ||
| Roller Width (mm) | 1600 | 2100 | 2600 |
| Winding Motor(KW) | 16N.M | 1.5KW | 2.2KW |
| Winding Speed(M/min) | 5-60 | 5-60 | 5-60 |
| Voltage | 380V/50HZ/3PHASE | 380V/50HZ/3PHASE | 380V/50HZ/3PHASE |
| Cover Dimensins(m) | 6.8*2.6*6.5 | 7.5*3.2*7.5 | 9.4.2*9 |
