Item |
Specs |
|
Voltage/Frequency/Phase |
220 V/440 V/415 V/380 V, 50 HZ/60 HZ, 3 Phases. |
|
Total Installation Power |
250 KW |
|
Consumption Power |
Around 150 KW |
|
Main Raw Material |
LLDPE, metallocene |
|
Thickness of Film |
10-50 μm |
|
Width of the Useful Film |
2400 mm/4 rolls×500 mm/4 rolls*450 mm |
|
Film Layer Structure |
ABC or CABAC |
|
Designed Linear Speed |
250 M/min |
|
Extrusion capacity |
500 Kg/h |
|
Dimensions (L×W×H) |
18.5×5.5×4.5 M |
|
Gross Weight |
18000 Kg (for reference only) |
Highlights on performance
1. High speed design: up to 250 M/min (the fastest designed speed and real running speed among similar machines).
2. High production capacity: 350~400 KGS/H (the biggest production capacity at lower microns among similar machines).
3.Machine can make 30-60kg jumbo rolls .
4. Quality stretch film which can compare with the film produced by European machines.
5. Suitable for producing both machine use stretch film rolls and hand use stretch film rolls.
6. Excellent production capacity and power consumption ratio.
Highlights on configuration
1. Martin type coupling is used for connecting the main motor and the gear box (much better than the pulley and belt connection).
2. Alloy screws and barrels with good nitrogen treatment.
3. Automatic screen changers powered by hydraulic station.
4. Top quality JC-TIMES T-die (Most famous Chinese brand and world-famous brand, optional).
5. Powerful and stable electrostatic film edges and trim treatment.
6. Big and quality cooling rollers from professional suppliers.
7. Film expanding rollers and oscillation system are installed to erase possible wrinkles before slitting.
8. Big diameter winding roller with frosted surface.
9. Patented paper cores unloading and loading system.
10. No need to do the air shaft inflation, deflation and paste the BOPP tape on the cores.
Except for this model, we also have other stretch film (production line) with different winding design and production capacity (100~460 KGS/H) for customer's option.
The whole set of stretch film machine (production line) are to be disassembled into several parts and packed by stretch film. They will be loaded into 2* 40 HQ containers and to be fastened inside the containers. We suggest that even though the parts are tightened, the customer still needs to buy the insurrance for the valuable stretch film machine. Below photos of loading are for customer's reference.
The lead time of the stretch film machine is arond 90~105 working days after receipt of the down payment.
Our stretch film machine equipment are sold to more than 60 countries. Please check the list as below. Some customers are more than customers and they are our friends so they will allow our potential customers to check the machine running in their factories.
A~G
Algeria, Argentina, Armenia, Azerbaijan, Bangladesh, Bahrain, Belarus, Bolivia, Brazil, Bulgaria, Cambodia, Cameroon, Colombia, Costa Rica, Czech, Ecuador, Egypt, Ethiopia, Fiji, Ghana, Greece, Guatemala.
H~R
Honduras, Hungary, India, Indonesia, Israel, Kazakhstan, Kenya, Korea (South), Kuwait, Latvia, Malaysia, Mexico, Morocco, New Zealand, Nigeria, Pakistan, Palestine, Paraguay , Panama, Peru, Philippines, Poland, Qatar, Romania, Russian Federation.
S~Z
El Salvador, Saudi Arabia, Serbia, Slovakia, South Africa, Spain, Sri Lanka, Syria, Thailand, Turkey, Ukraine, United Arab Emirates, United Kingdom, United States, Uzbekistan, Vietnam, Zimbabwe.
1. XHD – specialized in cast stretch film machine sinced 2006 .
2. Our factory are National High New-Tech Enterprise .
3. Modernized factory building area 50,000 squre meter , international leading CNC and processing equipments .
4. Got CE certificate of conformity and 66 leading technology patents .
5. Our machines have been exported to more than 70 different countries ( US , Mexico,Russia , Turkey, South Africa , Thailand , Vietnam , India and ect ...)
6. Set up offices at home and abroad, such as: Turkey, Russia, Peru , India , Thailand,
Shanghai , Hebei , Shangdong etc .
7. Manufactured more than 5,000 cast film equipments.
8. Manufactured more than 80 sets of 2000mm cast film / stretch film / cling film euipments during last 3 years .
9. 30% higher output , 30% higher speed , 30% lower power consuption than peers
10. Attend more than 20 exhibitions at home and overseas every year .

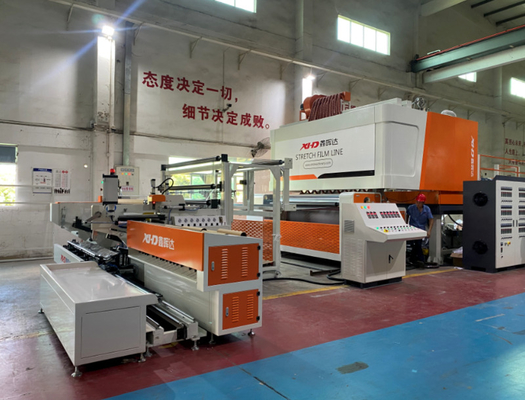

XHD Workshop :
Some of XHD customers
