ホーム /製品/ストレッチフィルム押出ライン/Film PLASTAR 1500mm PE Film Three-Layer Co-Extrusion Stretch Film Machine

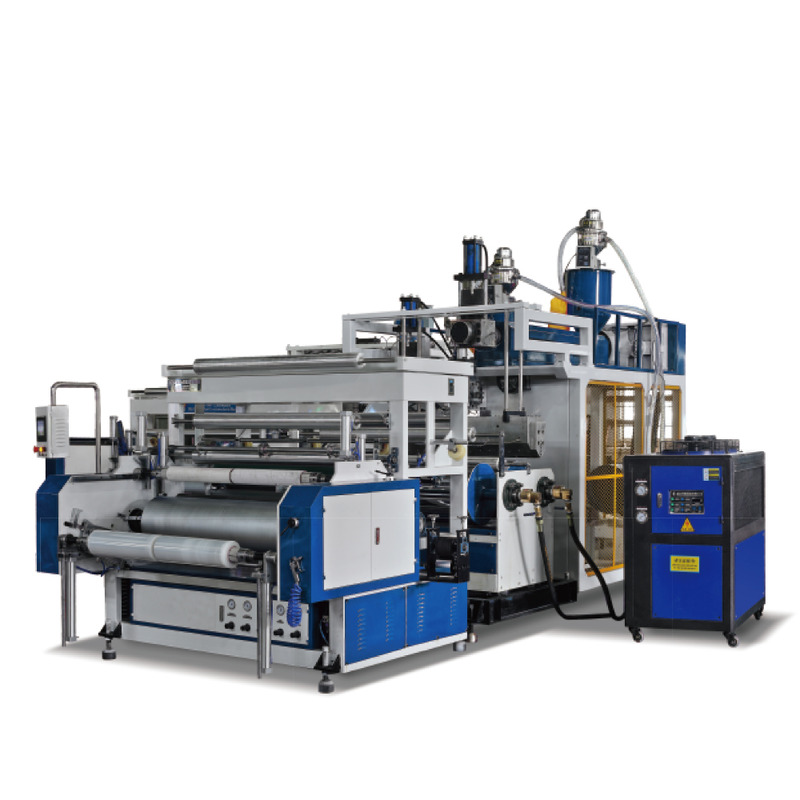

Film PLASTAR 1500mm PE Film Three-Layer Co-Extrusion Stretch Film Machine

1 Set
MOQ
$80,000.00(1 - 2 Sets) $65,000.00(3 - 5 Sets) $50,000.00(6 - 8 Sets) $30,000.00(>=9 Sets)
価格
Film PLASTAR 1500mm PE Film Three-Layer Co-Extrusion Stretch Film Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Application: Film
Plastic Processed: PE, Polystyrene, Lldpe
Condition: New
Screw Design: Triple Screw
Screw L/D Ratio: 30:1
Screw Speed (rpm): 120 rpm
Showroom Location: Turkey, Viet Nam, Russia
Voltage: 380V
Dimension(L*W*H): 8.0X4.0X3.5M
Power (kW): 150
Weight: 11000 KG
Warranty: 1 Year
Key Selling Points: High-accuracy
Applicable Industries: Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Other
Marketing Type: Ordinary Product
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Screw
stretch film machine: three layer stretch film machine
After-sales Service Provided: Video technical support
基本情報
お支払配送条件
Packaging Details: stretch film wrapping outside and wooden case
Supply Ability: 10 Set/Sets per Month
製品の説明
Products Description

Three layer stretch film machine description

Stretch film unit has automatic flexible roll changing functions, that is automatic cutting, roll changing and whole PLC
controlling, safety and reliable, without mis-operation. The automatic cutting knife made by professional tool gringing factory.
The rewinding roller is independent of inverter control, adjust speed quickly, effectively ensure the winding roller tension,
rewinding smooth and neat, and also energy saving. The whole machine has easy operation, and the speed and the temperature are real-time monitored. It has strong anti-interference ability, with increasing the stability of Inverter and temperature controller, the machine working life will become longer.
Model
CG-3L1000
CG-3L1500
CG-3L2000
Suitable Material
LLDPE
Film Width(adjustable)
1000mm(500*2)
1500mm(500*3)
2000mm(500*4)
Film thickness
0.006-0.05mm
0.006-0.05mm
0.006-0.05mm
Max. Output
120kg/h
180kg/h
220kg/h
Screw Diameter
55mm*2; 65mm*1
65mm*2; 90mm*1
75mm*2; 90mm*1
Screw L/D
30:1
Screw Material
SCAM-645 / 38CrMoAlA
Average Power-consumption
32kw
50kw
75
Die Size
1250mm
1800mm
2300mm
Take-Up Speed
50-100m/min
50-100m/min
50-100m/min
Winding Type
Surface friction type
Winding Speed
50-100m/min
50-100m/min
50-100m/min
Voltage
380V. 50HZ. 3 PHASE
Dimension (L*W*H)
7.0*3.5*3.5m
8.0*4.6*3.5m
10.5*5*3.5
Company Profile
Factory pictures
Certifications
Exhibition
Packing & Delivery
FAQ
Question 1. Why should buy from us not from other suppliers?
We are famous and professional blown film machines factory from China. we have very well experiences can ensure our machine is quality controlled and reliable. we also have our own CNC center for making die head for machine.

Question 2. What certificates do your blown film machines have?
Our factory fully implements the ISO9001:2015 quality management system and has passed the TUV certification, which covers the design, production, and delivery. We also have the Swiss SGS certification and EU safety CE certification, which can meet the safety requirements of most countries in the world.

Question 3. What are the main markets of your blown film machines?

As of December 2019, our blown film machines had been sold to 93 countries around the world, mainly including China, Europe, the Middle East, Southeast Asian, the United States, Canada and Latin American countries.

Question 4. What is the general delivery time of blown film machines?

The production of a blown film machine usually takes about 30 to 60 working days, depending on the size and configuration of the machine.

Question 5. How long is the warranty period of blown film machines?

All our blown film machines have a one-year warranty, starting from the date of machine arrives at customer's factory and finished commissioning. During this period, we will provide a fully free warranty for the whole machine, except consumables.

Question 6. Can I visit the blown film machine production plant and watch the commissioning process?

Of course you can. we welcome you to visit us at any time. We will pick you up at Wenzhou Longwan Airport or Rui’an Railway Station.

Question 7. Where is the blown film machine factory?

Our factory is located in Wanquan Industrial Zone, No. 104 National Road, Wanquan Town, Pingyang County, Wenzhou City, Zhejiang Province, China. You can take a plane to Wenzhou Longwan Airport or take a train to Rui’an Station. Please make an appointment with us in advance, and our driver will pick you up when you arrive.

Question 8. What kind of after-sales service do you provide if the blown film machines encounter technical problems or part damage?

We will remotely communicate with you via video to tell you how to solve technical problems of blown film machines. If the problem can't resolve, we will send engineer to your factory. If the damaged part (non-consumable part) is within the warranty period, we will provide you with another one free of charge, with the transportation charges paid by our factory.

Question 9. What is the payment method for blown film machine orders?

We will start production when we received the 30% deposit of the order. After we finished the production and received the last 70% payment, we will arrange shipment and send machine to customer.
