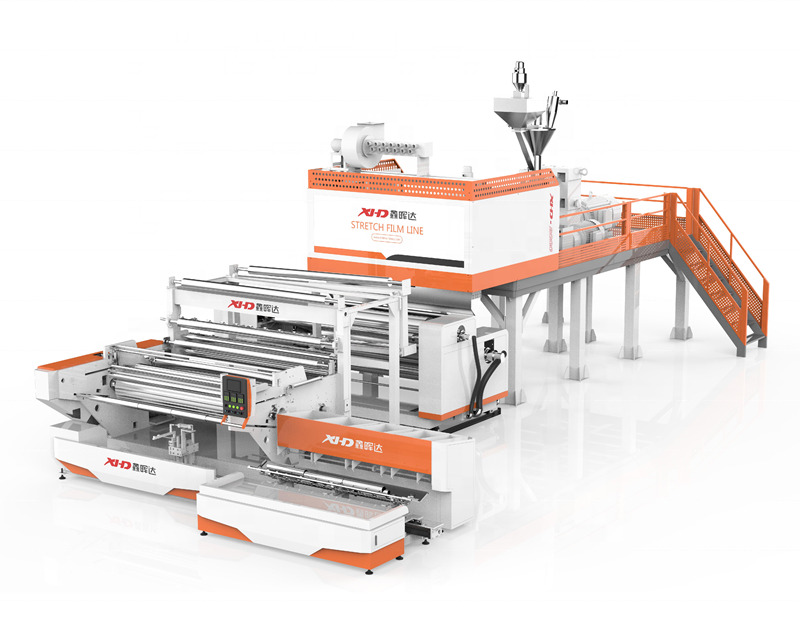

Film Xinhuida Co Extrusion Stretch Film Machinery lldpe Stretch Film Machine

1 Set
MOQ
$150,000.00(>=1 Sets)
価格
Film Xinhuida Co Extrusion Stretch Film Machinery lldpe Stretch Film Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Application: Film
Plastic Processed: PE, Lldpe
Condition: New
Screw Design: Triple Screw
Screw Material: 38CrMoALA
Screw diameter (mm): 80/120/80mm
Screw L/D Ratio: 30:1
Screw Speed (rpm): 100 rpm
Showroom Location: Egypt, Turkey, Viet Nam, India, Mexico, UAE, Nigeria
Voltage: Customized
Dimension(L*W*H): 15*4.5*4.5M
Power (kW): 250
Weight: 20000 KG
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant
Marketing Type: Hot Product 2021
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC, Gearbox, Screw
Product name: fully automatic stretch film machine
Final product width: 2000mm/4 rolls *500mm
layers structure: 3 layers or 5 layers
Model Number: XHD-L80/120/80*2400MM
Raw material: LLDPE
Capacity: 300-450kg/h
L/D: 30/1
Inverter: Senlan
PLC: Japanese Mitsubishi
Automatic Grade: Full-automation
基本情報
Model Number: XHD-L80/120/80*2400MM
お支払配送条件
Supply Ability: 30 Set/Sets per Month
製品の説明
Product Description
Fully-Automatic Five Layers 2000mm LLDPE Stretch Film making Machine
Model
XHD-80/120/80 X 2400
Screw Diameter
80/120/80mm
Width
2000mm ( 4 rolls* 500mm)
Thickness
0.010~0.05mm
production Capacity
300~450kg/h
Total Power
250KW
Layer Structure
CBA 3 layers/ CABAC 5 layers
Total Weight
20000 kgs
Machine Dimension
15000*5500*4500 mm

Application Scenarios

Hand Use Stretch Film Package

Hand stretch film or hand stretch wrap are films designed specifically to be manually applied. It's also called manual pallet wrap and hand wrap. This type of film is traditionally used in lower capacity packaging operations.

Machine Grade Stretch Film

To achieve maximum consistency, speed and stability in palletization processes, combine automated systems with machine stretch film. When combined with a stretch wrapping machine. Machine wrap stretch film is applied to the load using the specific parameters set by the operator for consistent results load after load.
Highlights on configuration and performance
1. Alloy screws and barrels with good nitrogen treatment.
2. Top quality alloy T-die.
3. Powerful and stable electrostatic film edges and trim treatment .
4. Big and quality 980 mm diameter cooling rollers.
5. Film expanding rollers and oscillation system are installed to erase possible wrinkles before slitting.
6. Big diameter winding roller with frosted surface.
7. Patented fast speed winding design (the real winding speed is more than 180 M/min)
8. No need to do the air shaft inflation, deflation and paste the BOPP tape on the cores.
Screw
Material: 38CrMoA1,Hard chrome-plated screw

Processing technique: Forging, quenching, nitrating
T-DIE
Width:2400mm
Die head material and processing: Use 718 high-quality steel, after quenching and tempering, grinding the inside surface of the
polished mirror surface and hard chrome plating treatment;
Cooling Roller
Diameter: 980mm;
Types: frosted Surface
Treatment: Special processing inside and outside the mezzanine, spiral cooling in two flow way to ensure even cooling temperature
for the surface of the roller and have copper coupling with recycling system.

Different Width Available

The roller for cutting sizes ( you can make 500mm, 450mm, 300mm according to your customer request..)

Temperature Control Cabinet

Separate temperature control cabinet and VFD to eliminate interference

In-line recycling Unit

182# In-line Recycling Unit + sealed material extrusion device (high power crusher to recycle the edge of film)

XHD-80/120/80 X 2400 stretch film making Machine Dimension
After Sales Service
Engineer is available to your place
1. 1 year warranty
2. 24 hour after-sale service line
3. Technology support and installation vedio for machine
4. High quality film recipe sharing
5. We have a large team to serve for you and can solve your problem within 24 huors.
Packing&Shipping
Machine Delivery time : 120 working days after the deposit received.
Container needed: 2X 40HQ
The whole set of stretch film machine (production line) will be disassembled into several parts and packed by stretch film and other protective material. And it will be fastened with the containers by wires.
Other Models
Model: XHD-55/75 X 1250
Finished Width: 1000mm ( 2 * 500mm)
Layers: AB or ABA layers
Output: 100kg~125kg/h
https://www.alibaba.com/product-detail/cast-stretch-film-production-line_62567496602.html?spm=a2747.manage.0.0.51dc71d2zPQ5wF
Model: XHD-80/120/80 X 2400
Finished Width: 2000mm ( 4 * 500mm)
Layers: CBA or CABAC layers
Output: 350~450kg/h
https://www.alibaba.com/product-detail/XINHUIDA-3-layers-5-layers-plastic_60762166762.html?spm=a2747.manage.0.0.51dc71d2zPQ5wF
Model: XHD-65/100/80X 2400
Finished Width: 2000mm ( 4 * 500mm)
Layers: ABC 3 or CABAC 5 layers
Output: 300kg/h
https://www.alibaba.com/product-detail/latest-design-high-speed-2000mm-fully_60559107584.html?spm=a2747.manage.0.0.51dc71d2zPQ5wF
Company Introduction

About Guangdong Xinhuida Machinery Technology Co., Ltd.

* National High-Tech Enterprise
* 20 years manufacturing experience of cast film line
* More than 60 international leading patents
* 60000 square meters of modern plant and a variety of international advanced high-end processing equipment
* Set up offices at home and abroad, such as Turkey, Russia, Peru, India, Thailand, Egypt etc.
* The output of the same model is 30% higher and the energy consumption is 30% less than the other supplier
* More than 8000 casting film production lines have been manufactured
* In the past three years, we have produced more than 200 sets of the casting film line and fresh-keeping film line with a width of two meters.
Customer Photos

XHD sold the machines overys 60 countries already.

EXHIBITONS: Turkey, Russia, Mexico, Peru, India, Egypt, South Africa, Pakistan, Vietnam, Thailand...
AGENT OFFICE: Turkey, Peru, Egypt, India, Vietnam, Ukraine
FAQ
Q: Can we make both manual grade and machine grade stretch film?
A: Yes.

Q: Can we make 5 layer stretch film by this machine?
A: Yes. You can make both 3 layer and 5 layer stretch film.

Q: Is this machine full automatic?
A: Yes. This machine is fully automatic one.

Q: Can we also use recycled material in this machine?
A: Yes. You can use recycled material. But the more recycled material you add, the stretch film will not as stretchable and
transparency as the raw material one. One of our customer in Russia used 100% recycled material. Of course, the design of the
screw will be a little different.

Q: What's the spare parts?
A: We have a lot of spare parts free to you. Pls email me for the list.

Q: Is there any other material that we use add to make stretch film?
A: It depends on your customers requiryment. You can add MLLDPE (metallocene) to make the film more stretchable, especially used
in pallet package. Or the glue to make the film more sticky.
