Automatic stretch film machine is a high-plasticizing, easy operating, long-life and energy saving three layers low cost automatic pe cast stretch film extrusion line which is of our company accumulated experience on the manufacturing of cast film machine and actual operation of customers and combine foreign top technology to renovate.
Automatic stretch film machine is mainly used to produce single-layer CPP,CPE,PP,PE,CEVA and other cast film. pe pallet stretch cling film machine adopts the top intelligent industrial control system combined with hidden auto cutter, auto cut off and manipulator for automatic roll exchange to ensure the operation is safe and easy, winding is more solid and smooth. Therefore, it ensures top product quality and the productivity greatly, reduce the production cost to create bigger value.
The main unit installed a shaking device to improve the smoothness of the web roll and appearance quality and make the products more competitive.
Advantages
It is a very good kind of packaging material mostly used in the industrial field, port pallet packaging, building material packaging, hardware packaging etc. It enjoys the following advantages:
1) Good tensile strength.
2) Superior anti-pricking ability.
3) High transparency.
4) Good ductility and anti-impact strength.
5) Stable sticky sides etc.

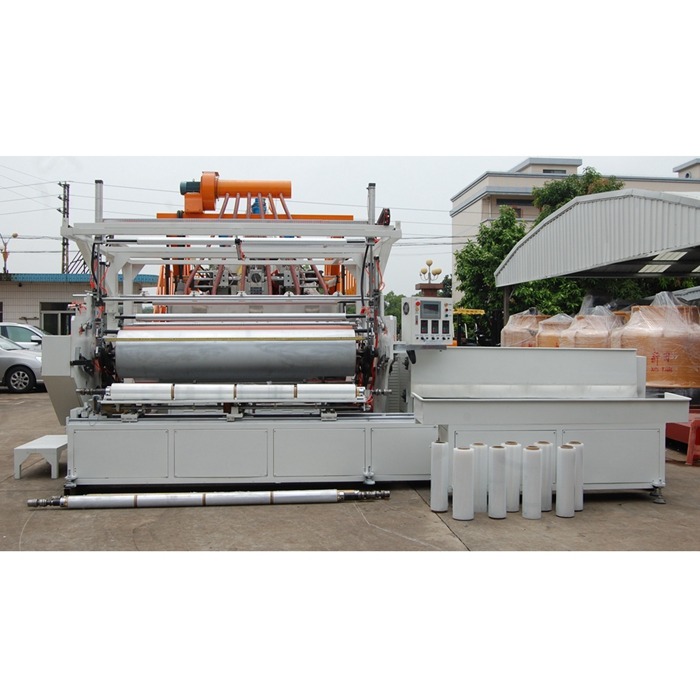

XHD Fully Automatic High Speed 5 Layers Co-extrusion Stretch Film making machine
No. | Item | Specs | Remarks |
1 | Voltage/Frequency/Phase | Customized | / |
2 | Total Installation Power | 220 KW | For the machine only. |
3 | Consumption Power | 160 KW | For the machine only. |
4 | Main Raw Material | LLDPE & HDPE | / |
5 | Thickness of Film | 10-50 μm | tolerance≤±5% |
6 | Width of the Useful Film | 2000 mm/4×500 mm | / |
7 | Film Layer Structure | ABC or ACBCA | ratio: 30%40%30% |
8 | Designed Linear Speed | 200 M/min | / |
9 | Output | 180-310 Kg/h | / |
10 | Dimensions (L×W×H) | 14×4.8×4.5 M | for ref. only |
11 | Gross Weight | 15000 Kg | for ref. only |
Features of stretch cling film machine
1) Main configuration: Single electrical power control box, extruders, single die, cooling forming rollers, edge
trim film inline recycler or on-site recycling system, automatic edge trimming system, automatic winding
system, double pneumatic control winding shafts etc.
2) Higher speed and higher output with stable quality, good ideal tensile and tear resistant stretch cling film.
Fully automatic casting stretch cling film machine is applied to single side cling or double sides cling stretch
film.
3) Heating and water cooling system is high efficiency and crucial components are imported or adopt
international brand products to ensure making even and good ductility stretch cling film.
4) Swing system is installed to adjust the film thickness and evenness. PLC controlled, fully automatic.
5) The alloy steel screw adopts special mixing function and high plasticizing design which combine import static
mixer to ensure plasticization is great, color is uniform and increase extrusion capacity greatly.
6) Packaging condition: Packed fully with EPE foam, blanketry and stretch film; wire and cable is fastened at on
the bottom of the container.
Optional system of plastic film machine
1) Sub-atmospheric Vacuum Pump.
2) Melting Gear Pump and PID Control System.
3) Accurate Touchable Screen Temperature Controller.
4) Robot Hands for Roll-change and Roll-rewinding Automaticlly.
5) Including Automatic Carton Loading&Unloading.
Packing information for customer's reference
>1. Packed with stretch film;
>2. The machine is fastened to the walls of the container;
>3. Dimensions: 14X4.8X4.5 M;
>4. Gross weight: 15 T;
>5. Containers needed: 1X40 HQ+1X20 GP;
Pictures of loading
XINHUIDA had sold High Quality Cast Pe Stretch Film Extrusion Line all around the world.
We can provide our customer information for your evaluation!
You can even visit our customers' factories to check the machine running!
>1. 24 hours after-sale hot line 400-833-5568.
>2. High quality stretch film recipe free sharing.
>3. 1 year warranty for all system and free technology support.
>4. Engineer dispatched to install the machine with travelling cost borne by the buyer.
FAQ
Q: Can we make both manual grade and machine grade stretch film?
A: Yes.
Q: Can we make 5 layer stretch film by this machine?
A: Yes. You can make both 2 layer and 3 layer stretch film.
Q: Is this machine full automatic?
A: Yes. This machine is fully automatic one.
Q: Can we also use recycled material in this machine?
A: Yes. You can use recycled material. But the more recycled material you add, the stretch film will not as stretchable and transparency as the raw material one. One of our customer in Russia used 100% recycled material. Of course, the design of the screw will be a little different.
Q: What's the spare parts?
A: We have a lot of spare parts free to you. Pls email me for the list.
Q: Is there any other material that we use add to make stretch film?
A: It depends on your customers requiryment. You can add MLLDPE (metallocene) to make the film more stretchable, especially used in pallet package. Or the glue to make the film more sticky.
Q: Can you help us to install the machine?
A: Yes. We can arrange the technician to install the machine after it arrives in your factory.
