Stretch film making machine mainly use LLDPE, LDPE or recycled LLDPE material to produce one side sticky or 2 sides sticky grass film, stretch film, cling film, cast stretch film etc.
The width from 20mm to 2000mm, single layer to 2 layers, 3 layers, 5layers and so on.
This Unit is based on our long time manufacturing experience and customer's actual operate, combine with Italy and Amercian high-tech to produce high plasticity, easy to operate, long life and power saving machine. This machine is fit for making stretch film, cling film and protecting film.
Film application
It is a very good kind of packaging material mostly used in the industrial field, port pallet packaging, building material packaging, hardware packaging etc. It enjoys the following advantages:
1) Good tensile strength.
2) Superior anti-pricking ability.
3) High transparency.
4) Good ductility and anti-impact strength.
5) Stable sticky sides etc.
Parameters
Item | Specs | Remarks |
Voltage/Frequency/Phase | Customized | / |
Total Installation Power | 78 KW | For the machine only. |
Main Raw Material | LLDPE & Mpe | / |
Thickness of Film | 12-50 μm | tolerance≤±5% |
Width of the Useful Film | 1000 mm/2×500 mm | / |
Film Layer Structure | AB or ABA | / |
Designed Linear Speed | 150 M/min | / |
Output | 80-150 Kg/h | / |
Dimensions (L×W×H) | 7.5×3.2×3.0 M | for ref. only |
Gross Weight | 8000 Kg | for ref. only |
Illustration

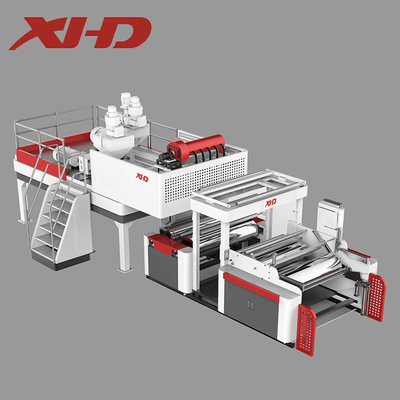

Fully automatic 1500mm three layers stretch film machine
Packing information for customer's reference
>1. Packed with stretch film;
>2. The machine is fastened to the walls of the container;
>3. Dimensions: 7.5X3.2X3.0 M;
>4. Gross weight: 8 T;
>5. Containers needed: 1X40 HQ;
Pictures of loading
XINHUIDA has customers all around the world.
We can provide our customer information for your evaluation!
You can even visit our customers' factories to check the machine running!
>1. 24 hours after-sale hot line 400-833-5568.
>2. High quality stretch film recipe free sharing.
>3. 1 year warranty for all system and free technology support.
>4. Engineer dispatched to install the machine with travelling cost borne by the buyer.
