LYM-500 single screw extrusion package stretch film machine
1.APPLICATION:
1)this machine adopt LLDPE as the basic mateiral, adopt different type of resin, extrusion the single
side sticky or double side sticky stretch/cling film;
2)This film with strong tension, it both with good retraction memory and self-sticky, can let the goods package well, then can avoid the goods collapse or dirty pollution on the transport way.
3)The film with good transparency and extensibility,this stretch film widely used for big goods
Unitized pallet package, it is the great replacement product for the hot shrink film.
2.MAIN TECHNICAL SPECIFICATION
|
Model |
LYM-500 |
|
Screw diameter |
50mm×1set |
|
Screw L/D ratio |
28:1 |
|
Die head width |
650mm |
|
Finished product width |
1500mm |
|
Film thickness |
0.008-0.05mm |
|
Film structure |
SINGLE LAYER |
|
Max. Output capacity |
30-40kg/h |
|
Machine liner speed |
50-100M/min |
|
Total power |
25kw |
|
Power supply |
380V/3phase/50HZ |
|
Dimension |
5.2×2.5×2.5M |
|
Total weight |
2800KG |
3.Machine detail picture show
1)CONTROL BOX AND EXTRUDER
2)REWIND FRONT VIEW
3)DIE HEAD
4)REWIND STRETCH FILM

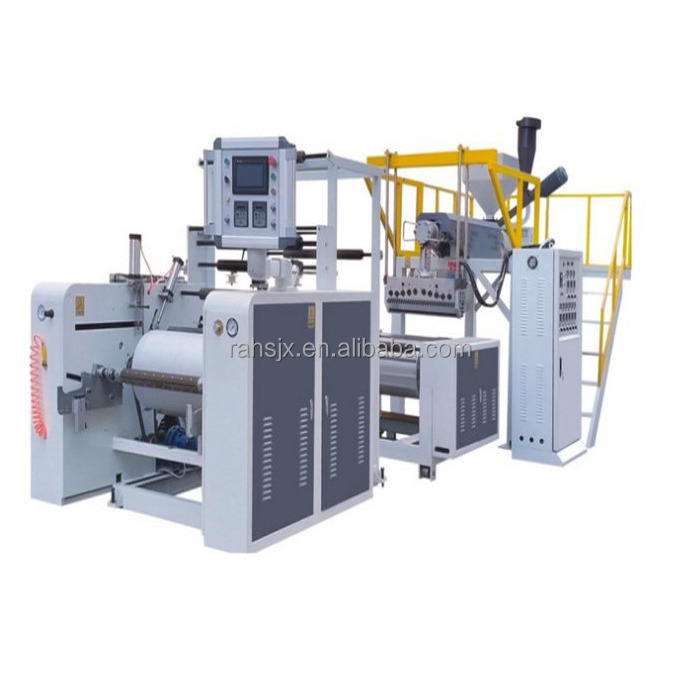

5) WHOLE MACHINE VIEW
6)STRETCH FILM SAMPLE
