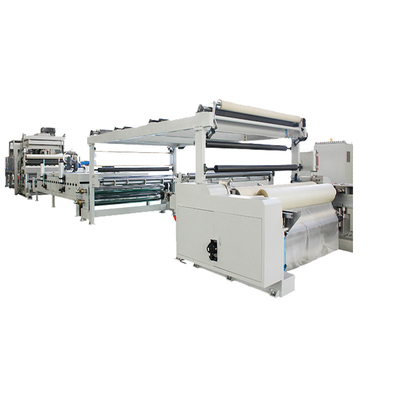

Plastic Sheet/Flat Sheet/Film Extrusion Production Line PVB /PE/ EVA Plastic Cast Film Extrusion Machine Production Line

1 Set
MOQ
$900,000.00(1 - 1 Sets) $500,000.00(>=2 Sets)
価格
Plastic Sheet/Flat Sheet/Film Extrusion Production Line PVB /PE/ EVA Plastic Cast Film Extrusion Machine Production Line
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Application: sheet/plate/film
Plastic Processed: PVB
Condition: New
Screw Design: Double-screw
Twin Screw Type: Co-rotating Parallel Twin-screw
Screw Material: W6Mo5Cr4V2
Screw diameter (mm): 51.4 mm
Screw L/D Ratio: 48:1
Screw Speed (rpm): 900 rpm
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Mexico, Russia, Spain, South Korea
Voltage: Customized, 380V 50HZ
Dimension(L*W*H): 4800*760*1200mm
Power (kW): 75
Weight: 30000 KG
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant
Marketing Type: New Product 2021
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox, Screw
Product name: Hot Sale PVB film twin srew line plastic sheet extrusion machine
Color: Customers' Require
Motor: SIEMENS Brand
Speed: 600rpm
Shaft: 40CrNiMO
Heater: Copper or aluminum heater
Barrel: 45 steel with overall liner
Inverter: ABB, Yaskawa, Delta
基本情報
お支払配送条件
Packaging Details: Hot Sale PVB film twin srew line plastic sheet extrusion machine Packaging Details packed in wood case
Supply Ability: 15 Set/Sets per Month extrusion machine
製品の説明
Product Description

PVB Intermediate Film Production Line Characteristics:

1.The Optimally designed twin screw extruder can produce PVB resin powder and PVB film recycling in any ratio.

2.Fully automated material handling system, highly automated raw material proportioning system.

3.Roll forming, Water forming, Membrane embossing molding, three forming methods to meet the needs of different customers.

4.Automatic winding device.

5.Turn-key project.

Type
Do/DI
Max.Products Width
Products Thickness
Output
Max.Line Speed
CTS75/CTS35
1.71
2750mm
0.38-1.52mm
200-300kg/h
25m/min
CTS95/CTS52
1.54
3000mm
0.38-1.52mm
400-700kg/h
25m/min
CTS120/CTS65
3600mm
0.38-1.52mm
600-900kg/h
25m/min
CTS135/CTS75
4000mm
0.38-1.52mm
800-1400kg/h
25m/min


Typical application


Laminated glass is made by sandwiching a layer of polyvinyl butyral (PVB) between two pieces of glass. The glass and the PVB are sealed by a series of pressure rollers and then heated. This combination of pressure and heat chemically and mechanically bonds the PVB to the glass. The mechanical bond occurs through the adhesiveness of the PVB, while the chemical bond is created through hydrogen bonding of the PVB to the glass. That inserted layer of PVB is what allows the glass to absorb energy during an impact and gives the glass resistance to penetration from flying projectiles. It also deflects up to 95 percent of ultraviolet (UV) rays from the sun [source: Reuters]. Laminated glass can break and be punctured, but it will stay intact because of its chemical bond with the PVB.

PVB interlayer film laminated glass is strong enough to keep flying objects from penetrating a car's windshield.

Applicable to the house is both beautiful and safe.

Specific application method.
Products Show
Product Detail

Screw elements

Screw Configuration means a structure composed of different combinations to achieve the desired performance, such as disperse, shear effect, solving the requirements of mixed materials as well as the production stability. Depending on the nature of work being carried out, there are Intake zone, Conveying Zone, Melting Zone, Natural Venting Zone, Mixing Zone, Vacuum Venting Zone and Metering Zone. Different screw elements own different features in different extrusion process, we should choose and design the right screw elements based on different extrusion status in order to optimize the overall comprehensive performance in the extrusion process.

Barrel

Product Description: According to appearance design, it can be divided into close barrel, open barrel and venting barrel. According to the liner, it can be divided into integrated barrel (without liner) and with liner barrel. Diameter: 12-350mm Material: Company adopts imported HIP process of powder high speed steel, and precision CNC machining of the cylinder is adopted to make its accuracy level, wear-resisting and corrosion resistance be consistent with the origin first-line brand abroad; Cost performance is superior to the similar imported products.

Core shaft
Structure: with cooling system/without cooling system Size: diameteter 10-120mm/lenghth 500-9000mm.
(1)40CrNiMo with special treatment and involute form can be used under thecircumstances of high torque, high torsion and high load.
(2 )And nitrogen bearing Martensite stainless steel, WRI5E and WR30 can also be applied to make good toughness and machine. performance available. The performance parameters similar to the imported shaft but with more cost efficient, the machining process is under accurate controlling to make sure the accuracy of groove depth and distance, the smoothness of the surface, toughness and durability as well.
Our Company

Factory


Workshop


Warehouse


Team


About us:

Nanjing Beyou Extrusion Machinery Co.,Ltd. is a professional rubber and plastic machinery manufacturer, mainly engaged in plastic extrusion machine as the core of the plastic modification equipment and related technology and engineering field of research and development and production of auxiliary machines. The main products are twin-screw extruder, single-screw extruder, PVB intermediate film production line equipment, glass fiber reinforced thermoplastics production line and self-developed underwater granulation system, which are widely used in various kinds of plastic and rubber materials, such as coloring, blending, filling, strengthening, stripping and recycling. According to different requirements of customers, we can provide appropriate solutions for customers.
Our company leads the industry in either software or hardware. Now it has a high-quality R&D team and engineering team that have engaged in the field of twin-screw extruder for many years. We have equipped with standard workshops, various automated advanced processing equipment and modern quality testing center. Our company invests huge sums of money in R&D every year to cooperates customer's development requirements, and dedicated to provide customers with technical design, machine assembly and on-site debugging services, strive to create greater economic and social benefits for customers.

Customer Photo
Packing & Delivery

Packing Details: Wood cases or sea worthy packing.

Delivery Details: Within 8 weeks from the receipt of your down payment.

Our Service
After-Sales Service:
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
Q: Are you trading company or manufacturer ? A: We are factory.
Q: Can you see the running machine in our factory? A: Yes.Before making your decision buying the equipment or not, you can bringsome material here to test-run the equipment.
Q: How much does it cost? A: Please fill in your specific requirement in the bottom blank and sent to us, so that we could make a detail quotation for you.
Q: How to get to our factory? A: (1)You can get to the lukou airport directly, then, connecting us and we will pick you up by car. (2)You can take the train to nanjing south station, then, taking the subway to get to China Pharmaceutical University Station, we will pick you up by car. If you have another question, pls feel free to contact us as below:
