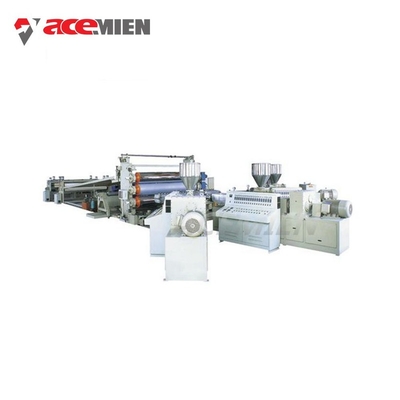

Plates Hot Sale Wood SPC WPC Plastic Composite Flooring Flooring Extrusion Line

1.0 Sets
MOQ
Plates Hot Sale Wood SPC WPC Plastic Composite Flooring Flooring Extrusion Line
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Application: Plates
Plastic Processed: WPC, SPC
Condition: New
Screw Design: Double-screw
Twin Screw Type: Counter-rotating conical Twin-screw
Screw Material: 38CrMoALA
Screw Speed (rpm): 37 rpm
Showroom Location: Viet Nam, Pakistan, Colombia
Voltage: 380V 50hz
Dimension(L*W*H): 1800*1200*1500mm
Power (kW): 37
Weight: 10
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Hotels, Building Material Shops, Restaurant, Home Use
Marketing Type: Popular product
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC
Output: 150-250kg/h
Name: WPC/SPC floor making machine
Motor Brand: Siemens
Inverter: ABB
Temperature: Omron
基本情報
お支払配送条件
Packaging Details: Customized
Supply Ability: 300 Set/Sets per Year
製品の説明
Products Description

Product Application

Machine name: PVC SPC WPC floor machine/ production line/ extrusion line
Features：SPC(stone plastic composite) flooring is a new type of environmental protection floor developed based on high technology.Its raw materials are natural stone powder and PVC resin powder, after extrude the floor base board, wear-resistant layer and color film are laminated to the base board via the 4rollers calendar through heating, no glue is used in the whole process. It has the characteristics of zero formaldehyde, anti-mold, moisture-proof, fire-proof, anti-insect, simple installation and so on.
Machine List
No
Name
Qty.
Remark
1
Spring loader for extruder
1
2
SJZ series conical twin screw extruder
1
3
Extrusion mould unit
1
Change mould for different shape
4
Vacuum calibration Table
1
5
Haul off unit
1
6
Cutter
1
7
Stacker
1
Auxiliary Machine
8
SRL-Z Series Mixer unit
1
Capacity : 450-550kg/h
9
Screw loader for Mixer
1
10
Crusher
1
Power: 11kw,22kw,30kw
11
Pulverizer
1
Power: 45kw,55kw,75kw
Details Images

Extrusion System
Name: SJZ series Conical twin screw extruder
Technical parameters:
a.Main motor :Siemens Brand.
b.Inverter:ABB
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d. Vacuum pump : Double station.



Calibration Table
Name: Calibration table with forming mould
Technical parameters:
a.Up and down, left and right manually adjusted
b.With Infrared device, guarantee speed synchronously with Haul-off speed.


Cutter
Name:Blade Cutter
Technical Parameters:
a.Cylinder control moving, non-dust cutting
b.With Photoelectricity device, guarantee cutting accurate
c.when lamination film or hot stamping film, each film pattern is accurate
d.PLC HMI operation
Certifications
Acemien Service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction,details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory. All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time. ACEMIEN will provide long-term technical guide.
Packing&Delivery
Packaging
Size
25m (L) * 3m (W) * 3m (D)
Weight
20 T


Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
800mm(L) * 600mm (W) * 45mm (D)
Weight
0.8T


Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to customers special request.
Company Profile


2000 square meter plant.exhibitions at Clean and morden environment ,and won customer.Strong strength and production praise .Indiaplas,


The r&d team consists of three senior engineers.More than 30 experienced,commissioning engineers.Perfect sales, after-sales, quality,control, management team


Participated in various,home and abroad,recognition and Like Chinaplas,Turkey, Europlas,Vietnam, Thailand,Russia, Philippines,Malaysia, Indonesia, Sri Lanka etc.

FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries, If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory. And you are always welcome to come to visit our company, and see the machine running in our factory, we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you provide customized service?
A2: We can design the machines according your requirements(material ,power, product type, machine color and so on),at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years.

Q3: What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q4: How long time for installation?
A4: According to your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days.
